Geo Composite Drain

A Geo Composite Drain (GCD), also known as a Geocomposite Drainage Layer, is a type of geosynthetic material used primarily for drainage applications in civil engineering, environmental protection, and construction. It is designed to provide an efficient solution for managing water, especially in situations where conventional drainage systems might be difficult or expensive to implement. The GCD combines multiple materials to create a high-performance drainage layer with specific advantages.

Components of a Geo Composite Drain:

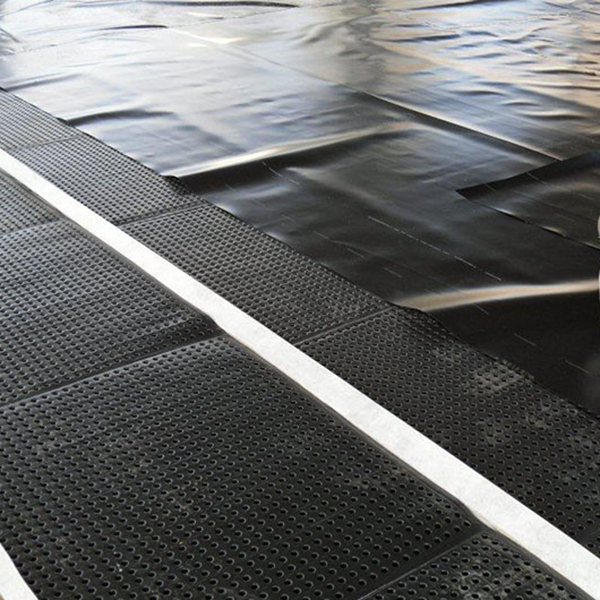

• Drainage Core: The core typically consists of a high-density polyethylene (HDPE) or similar synthetic material. It has a three-dimensional structure that allows water to flow through it. The core can take various forms such as a geonet, a perforated plastic sheet, or a corrugated structure.
• Filter Fabric: On both sides of the drainage core, a geotextile fabric is typically placed. This fabric prevents the migration of soil particles into the drainage core, ensuring that the water can flow freely while filtering out sediments or contaminants.
• Cladding/Protection: Some GCDs may have an outer layer that protects the core and the filter fabric from damage or erosion during installation.

Applications of Geo Composite Drains:

• Landfills: GCDs are used to manage leachate (liquid waste) and groundwater in landfill sites by allowing for efficient water flow away from sensitive areas.
• Drainage in Road Construction: Geo composite drains are used to reduce water buildup in roadbeds and prevent damage to the road structure.
• Retaining Walls and Slopes: They help control water pressure behind retaining walls and stabilize slopes by draining excess water.
• Sports Fields: GCDs are used in the construction of sports fields (like football or golf courses) to control groundwater and ensure the field remains dry during rainy conditions.
• Construction of Embankments: GCDs can be used to relieve pore water pressure and prevent softening of the embankment.
